1/2 Inch Drive Insert Ratchet Head

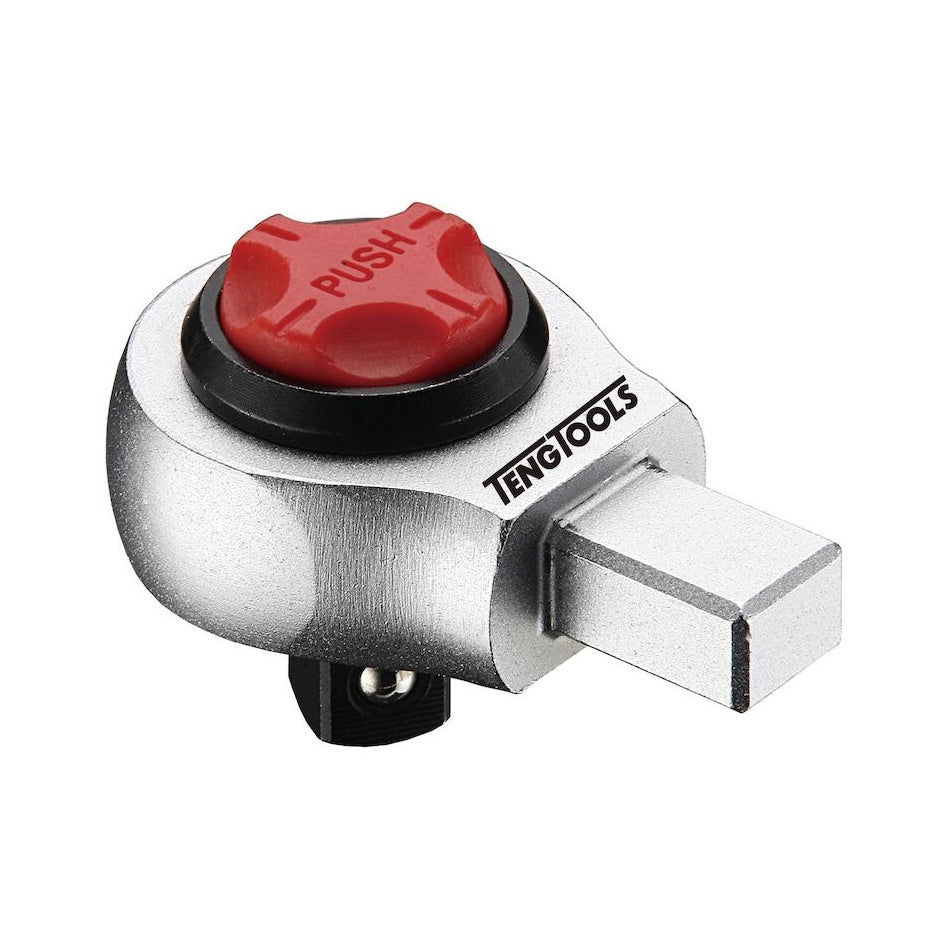

The Teng Tools 1292CQ200R is a 1/2 inch drive ratchet head for insert torque wrenches, with a 45 teeth ratchet and a 14 x 18 mm insert fitting. Teng Tools designs it for use with the P-SERIES insert torque wrenches: it slots into the wrench like any 14 x 18 mm insert and turns it into a ratcheting socket wrench that still tightens to the set torque value.

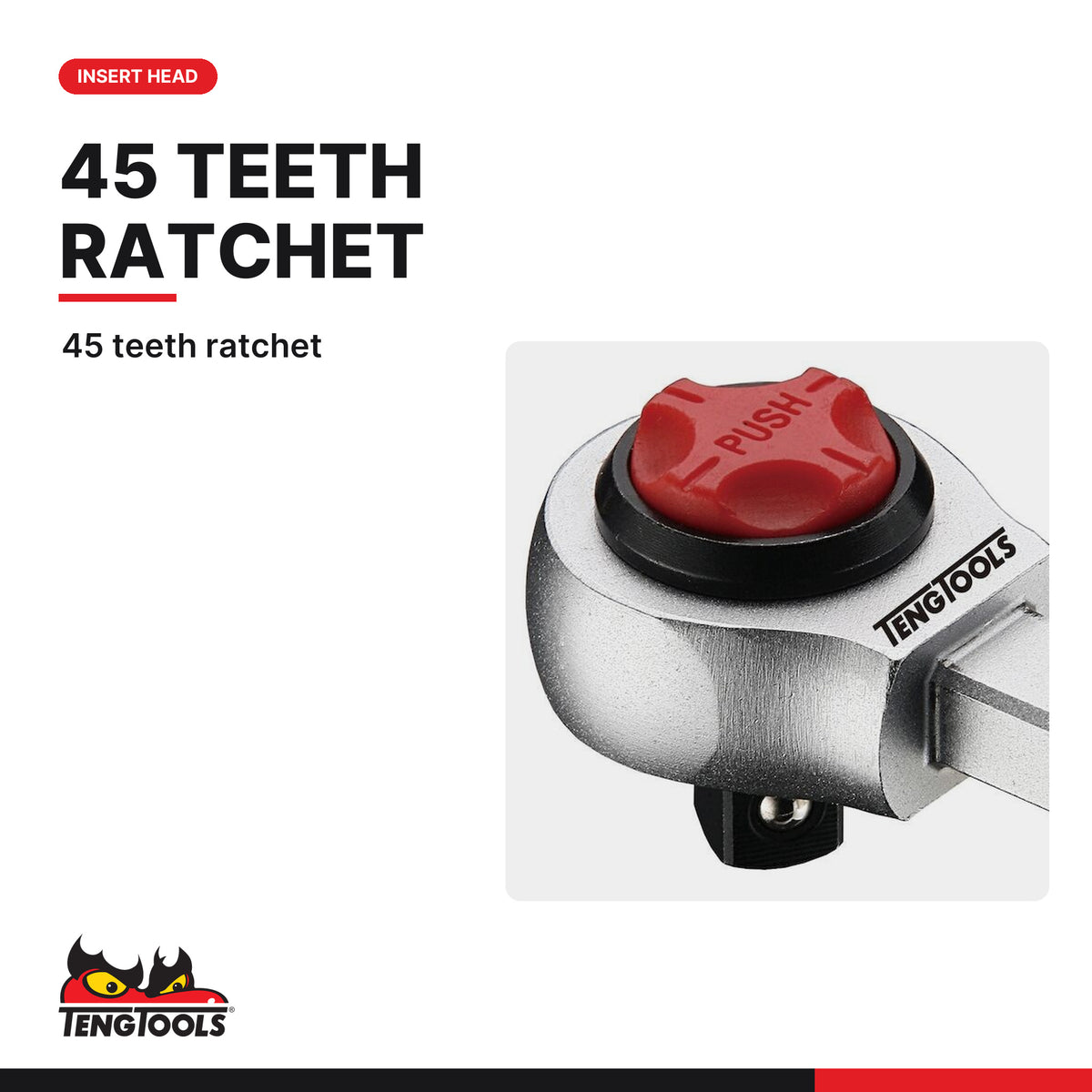

The 45 teeth ratchet means you can work a run of fasteners to the set value without taking the socket off between strokes. Direction changes with a push twist action on the head, and the 1/2 inch drive has a quick release, so sockets change over cleanly when the fastener size changes.

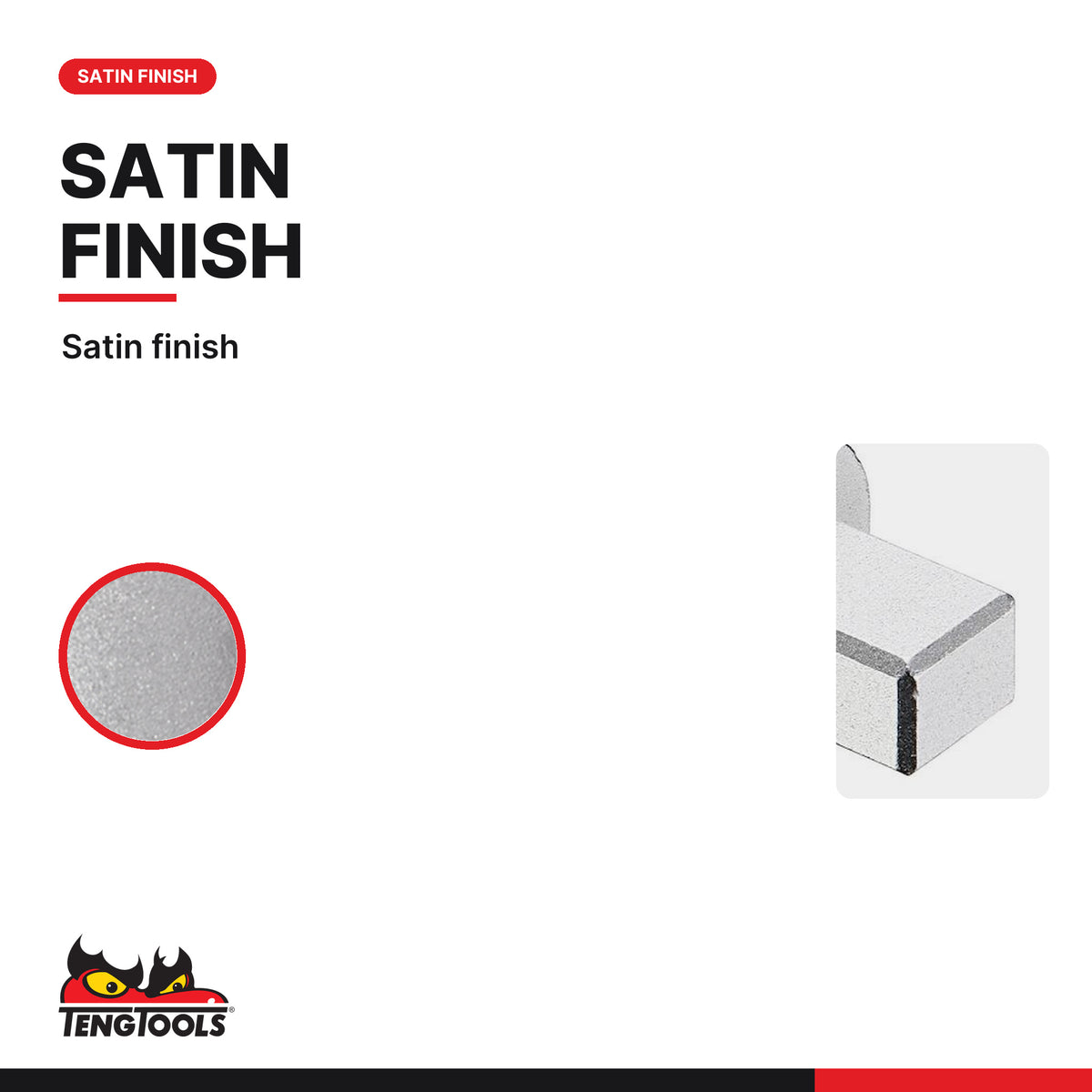

The head has a satin finish. It measures 70.5 mm (2.8 in) long, 42.5 mm (1.7 in) wide and 46 mm (1.8 in) high, and weighs 288 g (10.2 oz), so it stores in the torque wrench case or a drawer with your other 14 x 18 mm inserts.

Use it where a socket reaches the fastener better than an open end or a ring: on studs, on recessed nuts and on bolt patterns where you want to keep the socket seated between strokes. Swap back to an open end or ring insert when the job calls for it.

What you get: one 1/2 inch drive ratchet head, 45 teeth, 14 x 18 mm insert fitting. The torque wrench and sockets are not included. Check that your wrench takes 14 x 18 mm inserts before ordering.

• The head carries a 45 teeth ratchet mechanism on a 1/2 inch square drive. Fitted to an insert torque wrench, it lets you tighten a run of fasteners to the set value without lifting the socket off the nut between strokes, which saves time on a long bolt pattern or a stud that turns a long way.
• The insert tool size is 14 x 18 mm. Teng Tools designs this head for use with the P-SERIES insert torque wrenches, so it slots into the wrench in place of an open end or ring insert. Check that your wrench takes 14 x 18 mm inserts before ordering. The torque wrench itself is not included.
• Direction changes with a push twist action on the head, so the ratchet works in either direction without the insert being taken out of the wrench. Push, twist and carry on, with the socket still in place on the 1/2 inch drive, which keeps the job moving from one fastener to the next on a crowded bolt pattern.
• The 1/2 inch drive has a quick release, so a socket comes off cleanly when you change size instead of being worked loose by hand. Combined with the insert fitting, the head and socket can be changed over fast when the next fastener on the job is a different size from the last one, without changing torque wrench.
• The head is 70.5 mm (2.8 in) long, 42.5 mm (1.7 in) wide and 46 mm (1.8 in) high, and weighs 288 g (10.2 oz). It has a satin finish. Keep it in the torque wrench case alongside the open end and ring inserts, so one wrench covers socket work as well as open end and ring end jobs.

Part number: 1292CQ200R
