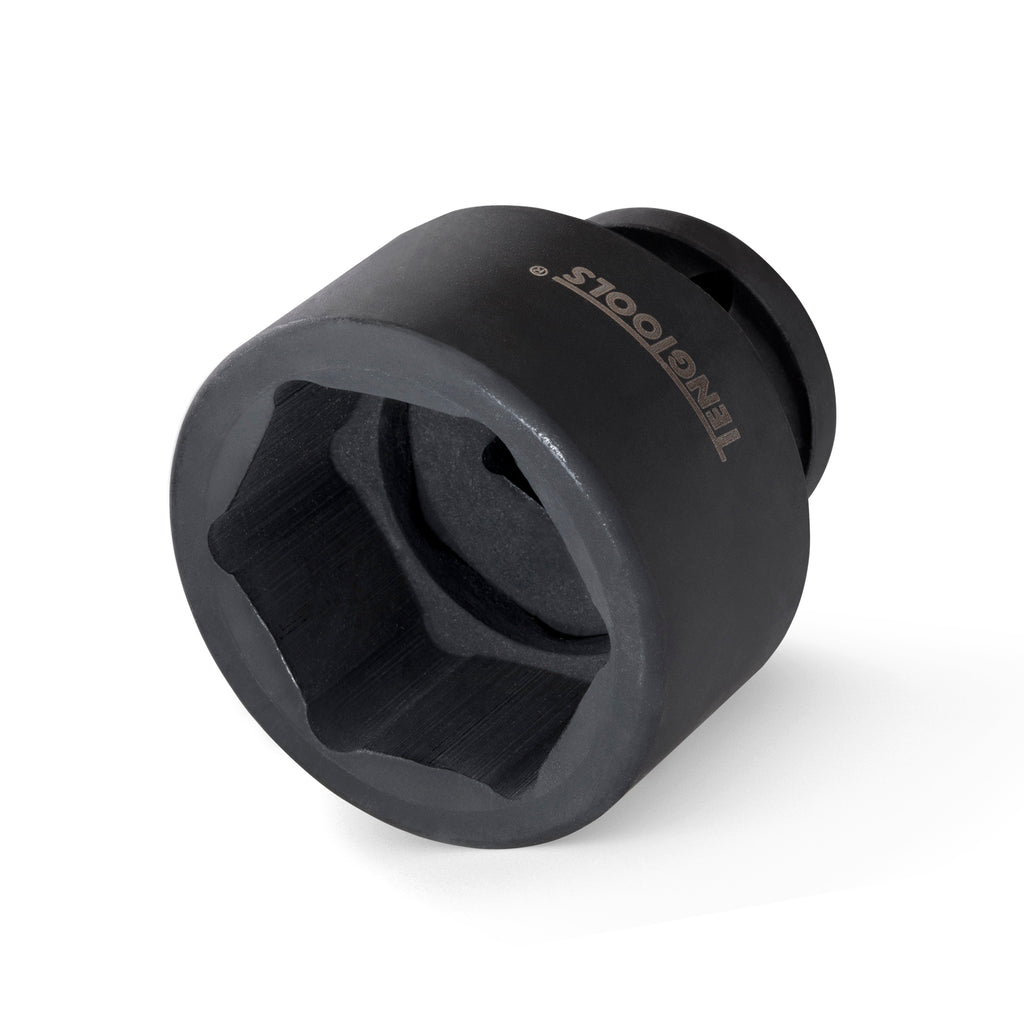

Teng Tools 3/4 Impact Socket DIN AF 11/16 — 940122

Teng Tools 3/4 Inch Drive SAE Impact Socket - DIN Standard, Individual, 51 mm Long, 280 g - 940122

$18.99
$18.99
Skip to product information
Teng Tools 3/4 Impact Socket DIN AF 11/16 — 940122
  • Teng Tools 3/4 Impact Socket DIN AF 11/16 — 940122
  • 3/4 Impact Socket DIN AF 11/16
  • 3/4 Impact Socket DIN AF 11/16
  • 3/4 Impact Socket DIN AF 11/16
  • 3/4 Impact Socket DIN AF 11/16
  • 3/4 Impact Socket DIN AF 11/16
  • 3/4 Impact Socket DIN AF 11/16
Teng Tools 3/4 Inch Drive SAE Impact Socket - DIN Standard, Individual, 51 mm Long, 280 g - 940122

Teng Tools 3/4 Inch Drive SAE Impact Socket - DIN Standard, Individual, 51 mm Long, 280 g - 940122

$18.99
$18.99
Low stock
  • Fast US dispatch from our Fort Worth, Texas warehouse
  • Genuine Teng Tools — professional-grade, designed in Sweden
  • Secure checkout — encrypted payment, trusted providers
  • Backed by guarantee — built to last a working lifetime
Download data sheet (PDF)
When a single SAE size in your 3/4 inch drive tray goes missing or wears beyond tolerance, replacing the entire collection is wasteful. This individual Teng Tools DIN socket gives you exactly the size you need, nothing more, so you can fill the gap and move on. Designed to withstand the high-torque cycling of pneumatic and cordless impact wrenches, it meets DIN dimensional standards for bore accuracy and drive-square fit. The result is a secure, low-slop connection to both the fastener and your tool, reducing the likelihood of rounding hardware or damaging the drive anvil. At 51 mm (2.0 in) long and weighing 280 g, the socket is compact enough for everyday underhood and underbody access while still providing the wall thickness needed for impact duty. Whether you are servicing fleet vehicles, maintaining agricultural equipment, or working on industrial installations, having the right individual size on hand eliminates downtime spent searching for a borrowed socket that may not come back. Add only the sizes your workflow actually demands and keep your tray organized, your budget intact, and your jobs moving forward.

Specifications

TypeSockets & Accessories
CategoryImpact Sockets
Drive size3/4"
Point6 Point
Measurement standardSAE
DIN / ISODIN
Part number940122

Inside this socket

Sectional view through the socket wall, drawn to the published dimensions.

17.46 mm socket cutaway (phosphate) 17.46 mm Chrome molybdenum (CrMo) wall 13.27 mm section Black phosphate finish Retaining pin hole 6-point hex bore (17.46 mm across flats) 3/4" square drive (19.05 mm)
  • 17.462 mm across flats
  • 3/4" square drive
  • 6-point profile
  • 51 mm overall length
