Double Ring Spanner Metric
Double Ring Spanner Metric
- Fast US dispatch from our Fort Worth, Texas warehouse
- Genuine Teng Tools — professional-grade, designed in Sweden
- Secure checkout — encrypted payment, trusted providers
- Backed by guarantee — built to last a working lifetime

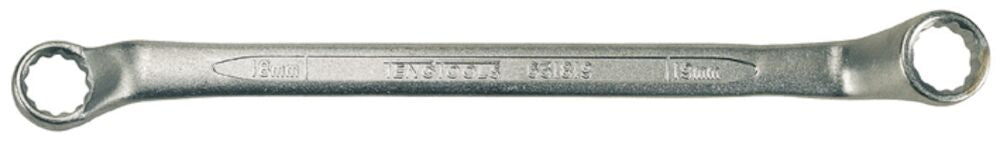

This 8 x 9mm metric double ring wrench features chrome vanadium steel construction with a satin finish, manufactured to DIN 838. The 75° offset double curved heads and Teng Tools hip grip design provide superior contact with fastener flats. It measures 183 mm in length and weighs 67 g, with ring heights of 6.6 mm and 7.0 mm.
- Different size at each end to give 2 sizes with one wrench
- Double curved heads offset at 75° for easier use on flat surfaces
- Chrome vanadium satin finish
- TengTools hip grip design for contact with the flat side of the fastening
- Designed and manufactured to DIN 838
Sizes & specifications
| Size | Part no. | Length | Weight |
|---|---|---|---|
| 7mm | 630607 | 6.6" (168 mm) | 1.6 oz (44 g) |
| 9mm | 630809 | 7.2" (183 mm) | 2.4 oz (67 g) |
| 11mm | 631011 | 7.8" (198 mm) | 3.0 oz (84 g) |
| 13mm | 631213 | 8.5" (217 mm) | 4.7 oz (133 g) |
| 15mm | 631415 | 9.4" (239 mm) | 5.4 oz (154 g) |
| 17mm | 631617 | 10.2" (260 mm) | 7.2 oz (204 g) |
| 19mm | 631819 | 11.5" (292 mm) | 9.0 oz (255 g) |
| 22mm | 632022 | 12.5" (318 mm) | 10.9 oz (308 g) |
| 23mm | 632123 | 12.9" (327 mm) | 13.5 oz (383 g) |
| 27mm | 632427 | 13.0" (329 mm) | 1.0 lb (0.46 kg) |
| 32mm | 633032 | 14.3" (362 mm) | 1.4 lb (0.63 kg) |
Lengths and weights in US units with metric in parentheses, straight from official Teng Tools data.
Specifications
| Type | Spanners & Wrenches |
|---|---|
| Category | Double Ring Spanners |
| Measurement standard | Metric |
| Part number | 630607 |
Shipping
Free shipping on orders over $99. Orders are stocked, picked and shipped from our warehouse in Fort Worth, Texas — orders placed on business days ship same-day wherever possible.
Lifetime warranty
Teng Tools hand tools are backed by a lifetime warranty against manufacturing defects. Screwdriver bits and socket bits are consumables and are guaranteed to meet dimensional standards. Torque wrenches and air tools can be serviced and recalibrated on request — contact us to arrange it.
Returns
Not right for the job? Contact us within 30 days of delivery and we'll sort out a return or exchange. Tools must be unused and in their original packaging. Warranty claims are handled separately — a defective tool is our problem, not yours.
