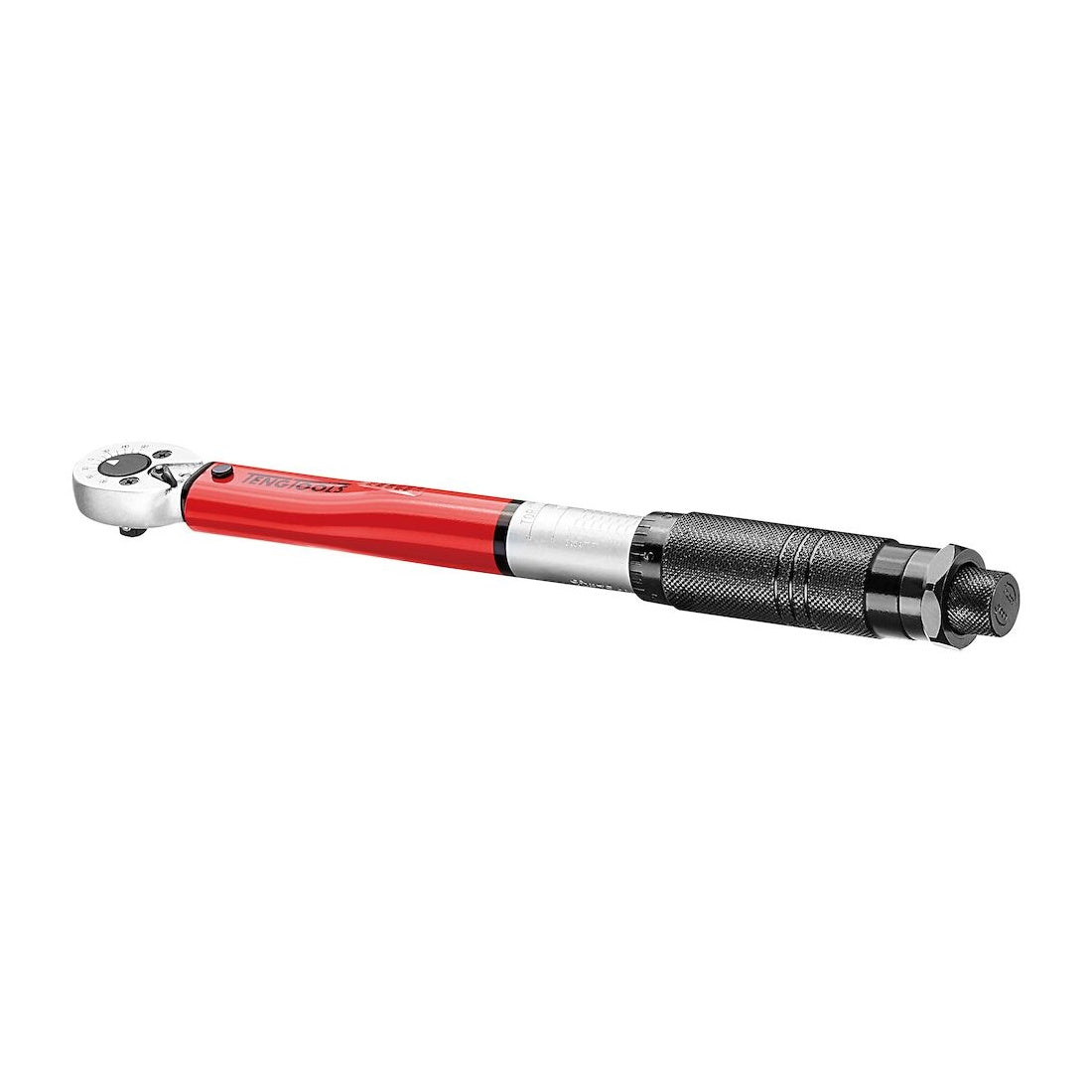

1/4 Inch Drive Click Torque Wrench

The Teng Tools 1492UAG-E is a 1/4 inch square drive click wrench with a range of 40 to 250 in-lb and a scale that reads in inch pounds. Set the value, pull, and the mechanism clicks so you can hear and feel when the setting is reached.

It is built for small fasteners where overtightening does the damage: valve covers, throttle bodies, sensors, small brackets and trim. Accuracy is within plus or minus 4 percent, and an angular gauge is built in for specifications that add an angle turn after the torque step.

The head uses a reversible 24-tooth ratchet mechanism to DIN 3122 with a 15 degree swing arc. A flip reverse lever changes direction with one hand, a twist locking feature holds the set torque so it does not move during use, and markings on the handle show where to place your hand for an accurate reading.

At 580 g (1.28 lb) it is easy to handle in tight spaces, and it is supplied in a protective storage case for the toolbox or the service truck. It works with any standard 1/4 inch drive socket or bit socket.

What you get: one 1/4 inch drive click wrench, 40 to 250 in-lb, in a protective storage case. Sockets are not included.

• Set the torque anywhere from 40 to 250 in-lb and the wrench gives a click you can hear and feel the moment the setting is reached, so you stop pulling at the right point instead of guessing. Click-type control in 1/4 inch drive is the right size for the small fasteners that strip or crack when they are overtightened.

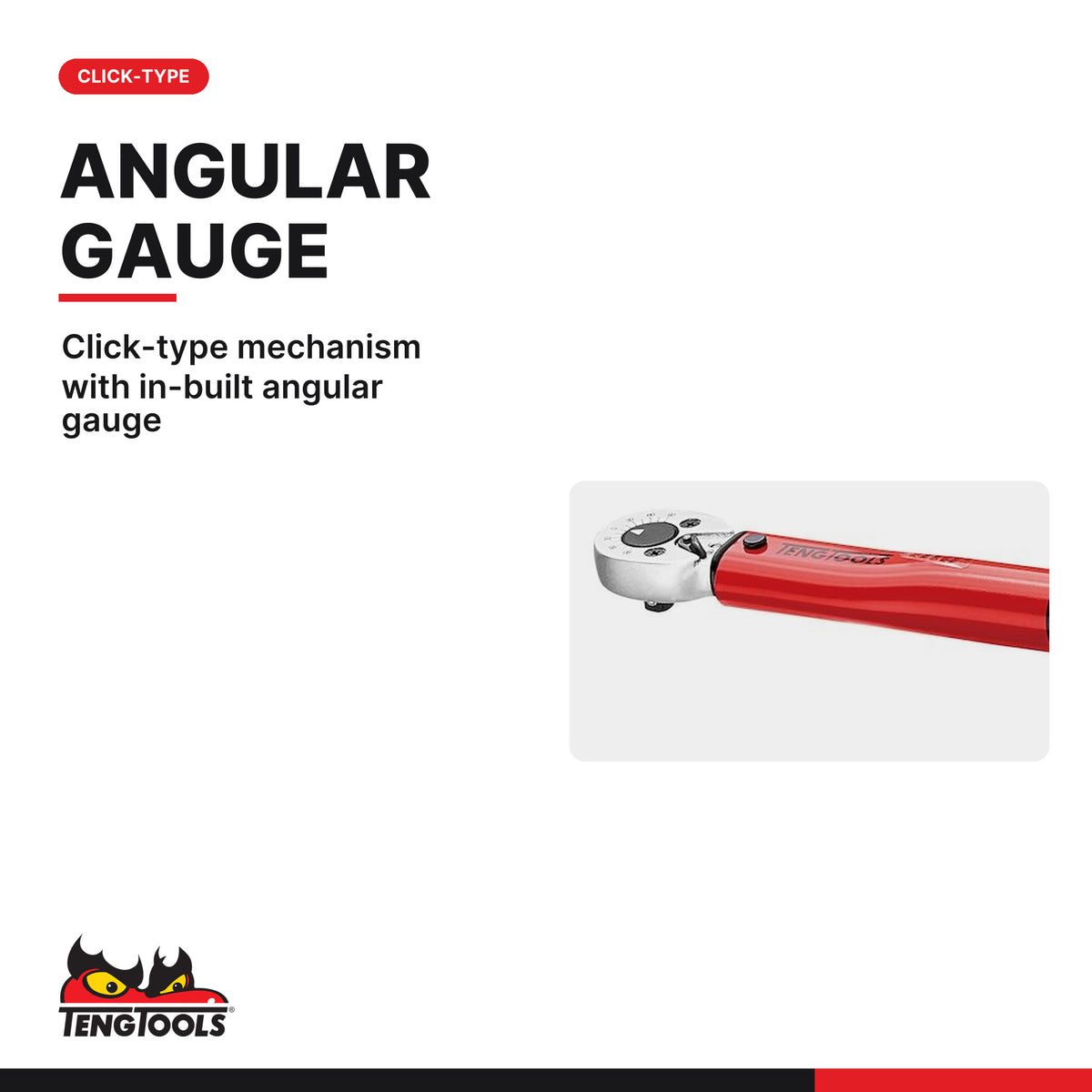

• An angular gauge is built into the wrench, so jobs that call for a torque value followed by a further angle turn can be finished with the same tool. No separate angle gauge to fit, hold steady and read while you turn. One less tool in the drawer, and one less thing to balance on the fastener while you work.
• Accuracy is within 4 percent, and the scale reads in inch pounds, the unit most small-fastener specifications are written in. Covering 40 to 250 in-lb puts it in the range of valve covers, intake and throttle bodies, sensors, small brackets and trim, where a larger 3/8 inch drive wrench would be working at the very bottom of its scale.
• The head carries a reversible 24-tooth ratchet mechanism to DIN 3122 with a 15 degree swing arc, and a flip reverse lever changes direction with one hand. A twist locking feature holds the set torque so it cannot drift while you work, and marks on the handle show where to hold it for a correct reading every time you pull.
• Supplied in a protective storage case that keeps the mechanism clean and the setting safe between jobs, in the toolbox, the service truck or on the shelf. The wrench weighs 580 g (1.28 lb), light enough for overhead and tight engine-bay work, and it takes standard 1/4 inch square drive sockets and bit sockets.

Part number: 1492UAG-E
