1/2 Inch Drive to 5/16 Inch Hex Bit Adaptor, Hex Bit Coupler

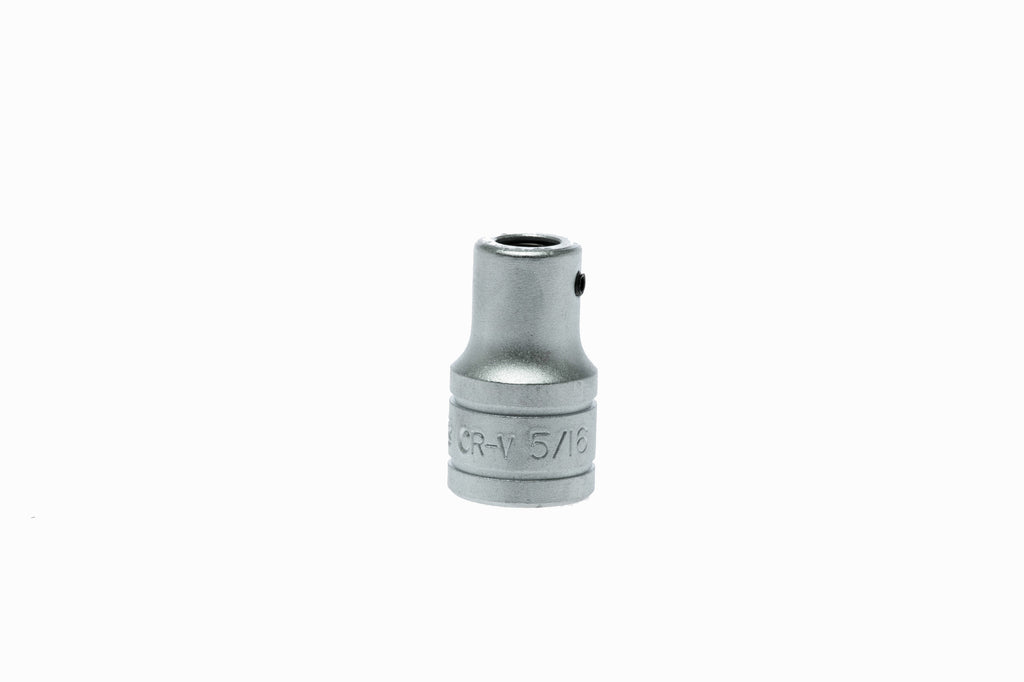

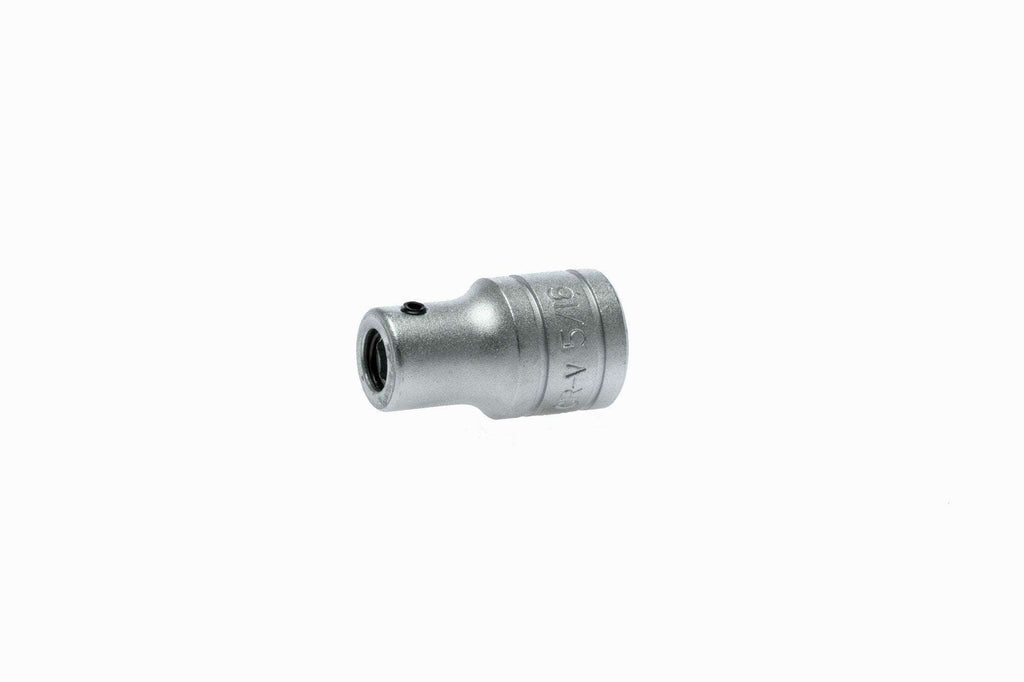

The Teng Tools M120060-C is a hex bit coupler: a 1/2 inch square drive adaptor that holds 5/16 inch hex shank bits. Fit it to a 1/2 inch drive ratchet, breaker bar or extension and it turns those bits with the reach and leverage of a 1/2 inch drive, for screws that need more than a screwdriver handle can give.

A retaining spring in the hex end holds the bit in place, so the bit does not fall out when the tool is turned over or drawn back from the work. Bits push in and pull out by hand.

The coupler is made from chrome vanadium with a satin finish for a better grip when handling it, and it is designed and manufactured to DIN ISO 1173. Teng Tools lists it as not for impact use, so use it with hand tools, not an impact wrench.

It is 38 mm (1.50 in) long and weighs 88 g (3.1 oz), and it comes with a metal socket clip so it can be stored on a socket rail alongside your 1/2 inch drive sockets.

What you get: one 1/2 inch drive to 5/16 inch hex bit coupler with a metal socket clip. Bits, ratchet, breaker bar, extensions and socket rail are not included.

• This hex adapter has a 1/2 inch square drive socket at one end and a 5/16 inch hex at the other, so a ratchet, breaker bar or extension turns 5/16 inch hex shank bits. It puts the leverage of a 1/2 inch drive behind a bit on stubborn screws. Bits and drive tools are not included.
• A retaining spring inside the hex end holds the bit in place, so the bit stays in the coupler when you turn the ratchet over, change angle or draw the tool back from the screw. Push a bit in to fit it and pull it out to change it, which keeps bit changes quick when one job needs several bit types.
• The coupler is chrome vanadium with a satin finish for a better grip when handling the adaptor. Teng Tools designs and manufactures it to DIN ISO 1173, and it is designed in Sweden for trade users in the automotive, maintenance and engineering sectors who keep 1/2 inch drive tools in the drawer.
• Teng Tools lists this adaptor as Impact: No, so run it on a hand ratchet, breaker bar or other manual 1/2 inch drive tool and not on an impact wrench. A 1/2 inch drive ratchet or breaker bar puts far more leverage on a bit than a screwdriver handle when a screw is tight.
• The coupler is 38 mm (1.50 in) long and weighs 88 g (3.1 oz), so it adds little length between the ratchet head and the bit. It is supplied with a metal socket clip for use with a socket rail, so it hangs with your 1/2 inch drive sockets and is easy to find when a job needs a bit on the ratchet.

Part number: M120060-C
