32 Piece 1/4 and 3/8 Inch Drive SAE Socket Set

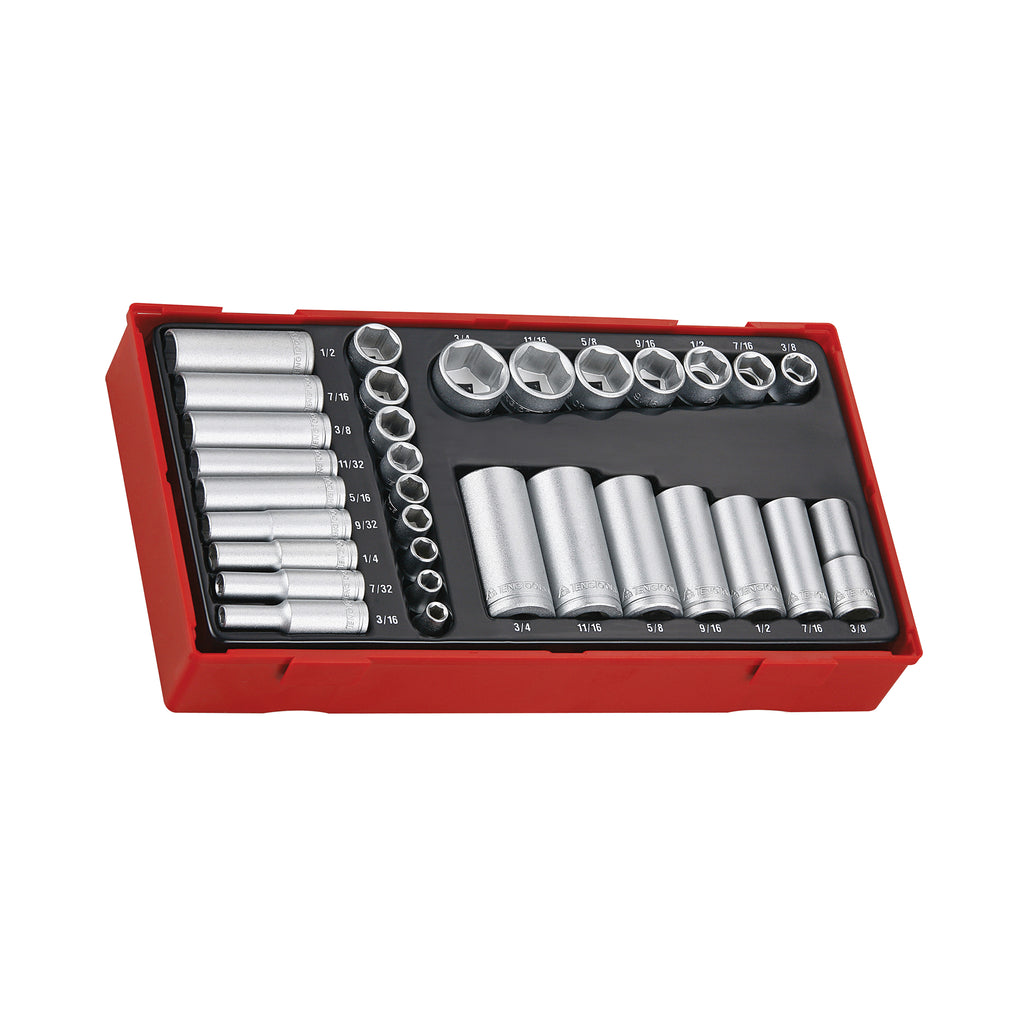

The Teng Tools TTAF32 is a 32 piece set of 6 point AF sockets on two drive sizes, packed in a TT-Series module size 1 tool tray. It holds eighteen sockets on 1/4 inch drive and fourteen on 3/8 inch drive, each size in a regular (shallow) and a deep version.

The 1/4 inch drive sockets run from 3/16 to 1/2 inch: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16 and 1/2. The 3/8 inch drive sockets run from 3/8 to 3/4 inch: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 and 3/4. Shallow sockets fit where clearance is short; deep sockets reach nuts on long studs and bolts with thread standing proud.

The sockets are chrome vanadium with a satin finish and are designed and manufactured to DIN3120/3124 and ISO2725, according to Teng Tools. Every one is a 6 point single hexagon design in AF (SAE) sizing.

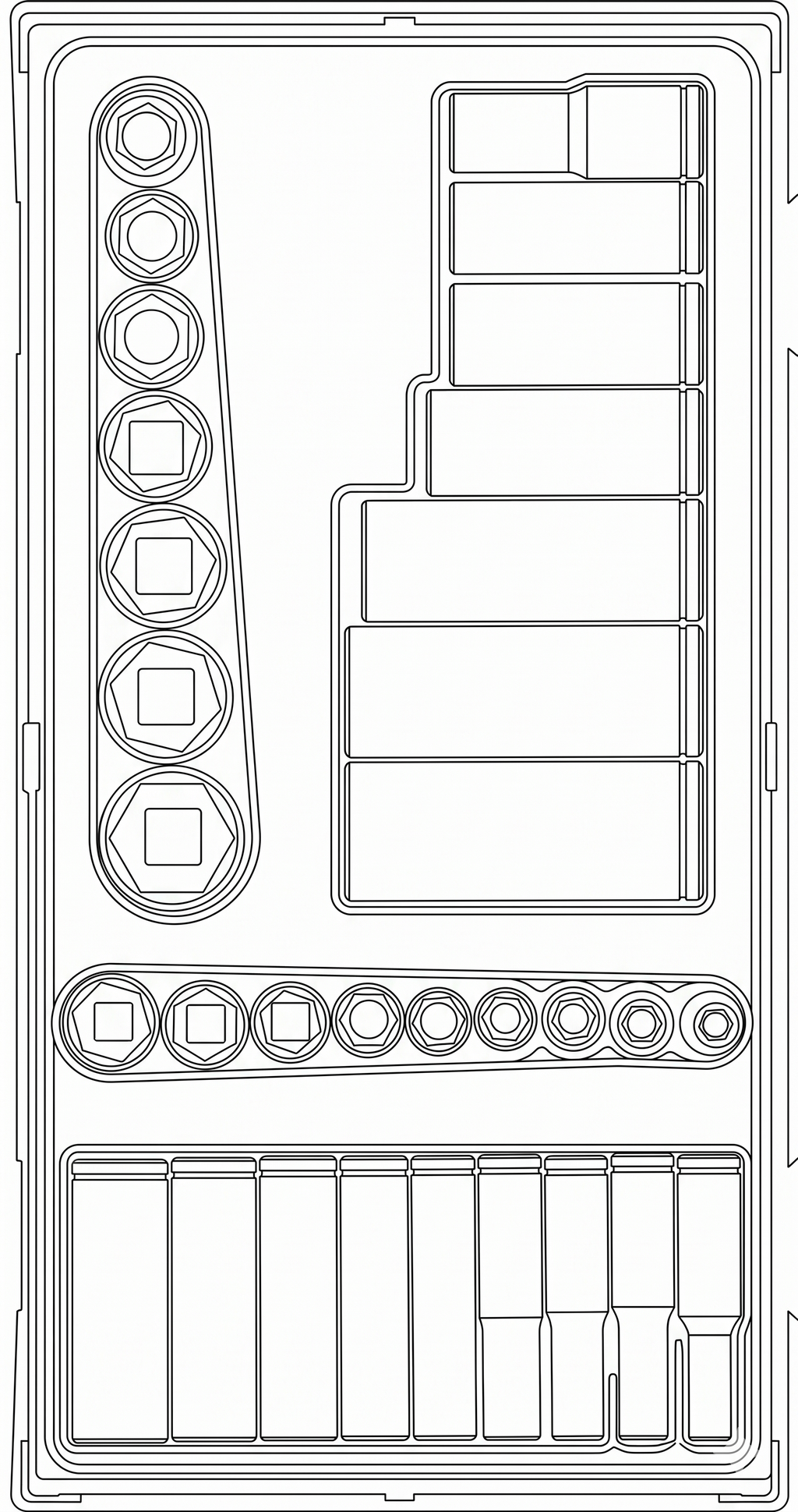

The TT1 tray has a PS inlay with a marked position for each socket, so a missing size is obvious at a glance. It measures 142 x 265 x 50 mm (5.6 x 10.4 x 2.0 in) and weighs 1422 g (3.1 lb) loaded, which suits a toolbox drawer, a tool cart or a service bay.

What you get: 32 sockets (9 regular and 9 deep on 1/4 inch drive, 7 regular and 7 deep on 3/8 inch drive) in a TT1 tray. Ratchet, extensions and handles are not included.

• Nine regular and nine deep 1/4 drive sockets cover 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16 and 1/2 inch. Every size comes in both lengths, so the shallow socket reaches a fastener in a tight spot and the deep one clears a long stud or a protruding bolt thread on the same size.
• Seven regular and seven deep 3/8 drive sockets cover 3/8, 7/16, 1/2, 9/16, 5/8, 11/16 and 3/4 inch. The 3/8 and 7/16 inch sizes appear on both drives, so you can pick the drive that suits the job and the ratchet already in your hand, or keep one size on each.
• All 32 are 6 point single hexagon sockets in AF (SAE) sizes. Chrome vanadium with a satin finish, designed and manufactured to DIN3120/3124 and ISO2725 according to Teng Tools. Ratchet, extensions and handles are not included, so this fills the gaps in an existing 1/4 and 3/8 drive kit.
• The sockets sit in a Teng Tools TT-Series tray, module size 1 (TT1), with a PS inlay that has a marked position for every piece. An empty position shows straight away which size has not come back from the job, and the tray lifts out of a drawer and goes to the vehicle or the bench as one unit.

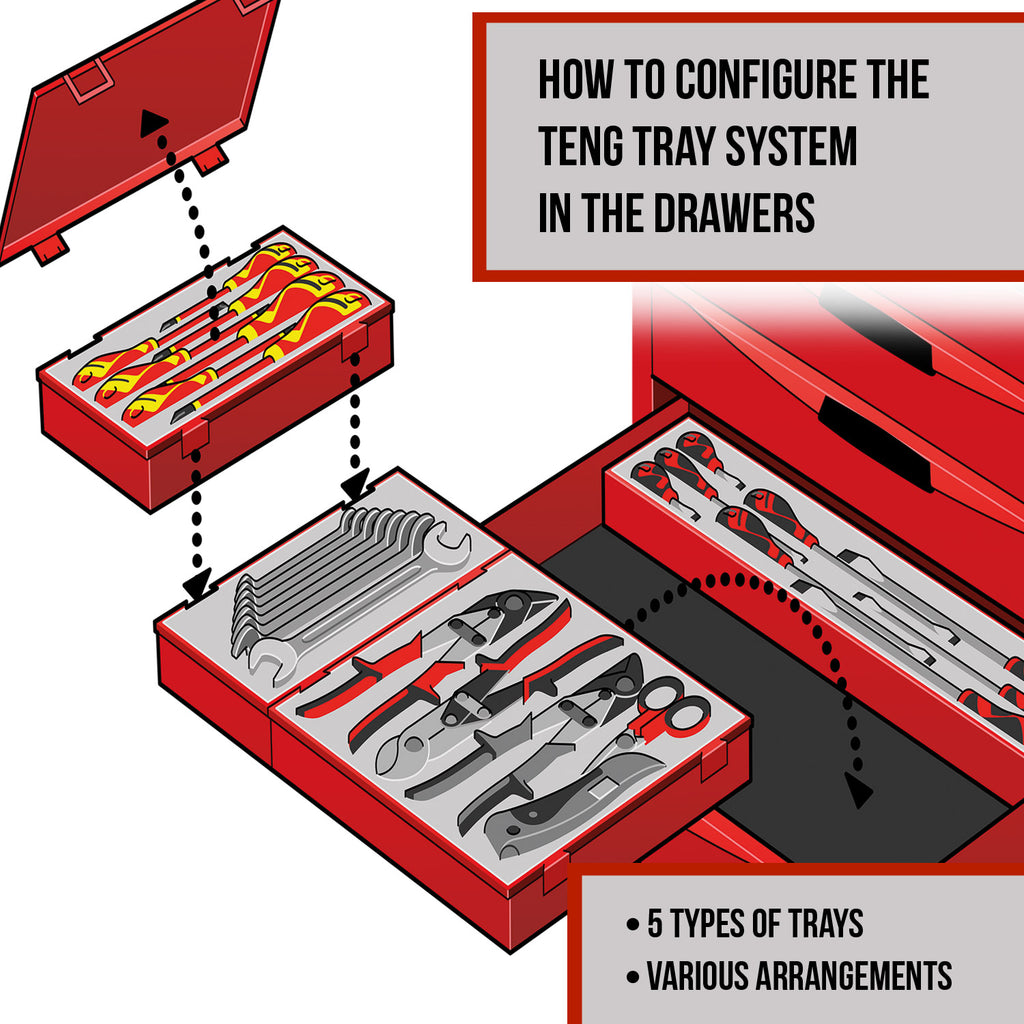

• The full tray measures 142 x 265 x 50 mm (5.6 x 10.4 x 2.0 in) and weighs 1422 g (3.1 lb) with all 32 sockets in place. It suits a toolbox drawer, a tool cart or a service bay workstation, and a TT1 module lines up with other TT-Series trays to build a drawer layout.

Part number: TTAF32
