72-Tooth Ratcheting Combination Spanner, Metric
72-Tooth Ratcheting Combination Spanner, Metric
- Fast US dispatch from our Fort Worth, Texas warehouse
- Genuine Teng Tools — professional-grade, designed in Sweden
- Secure checkout — encrypted payment, trusted providers
- Backed by guarantee — built to last a working lifetime
Data sheets (16 PDFs)
- 600509R Data sheet (PDF)
- 600510R Data sheet (PDF)
- 600511R Data sheet (PDF)
- 600512R Data sheet (PDF)
- 600513R Data sheet (PDF)
- 600514R Data sheet (PDF)
- 600515R Data sheet (PDF)
- 600516R Data sheet (PDF)
- 600517R Data sheet (PDF)
- 600518R Data sheet (PDF)
- 600519R Data sheet (PDF)
- 600522R Data sheet (PDF)
- 600524R Data sheet (PDF)
- 600527R Data sheet (PDF)
- 600530R Data sheet (PDF)
- 600532R Data sheet (PDF)

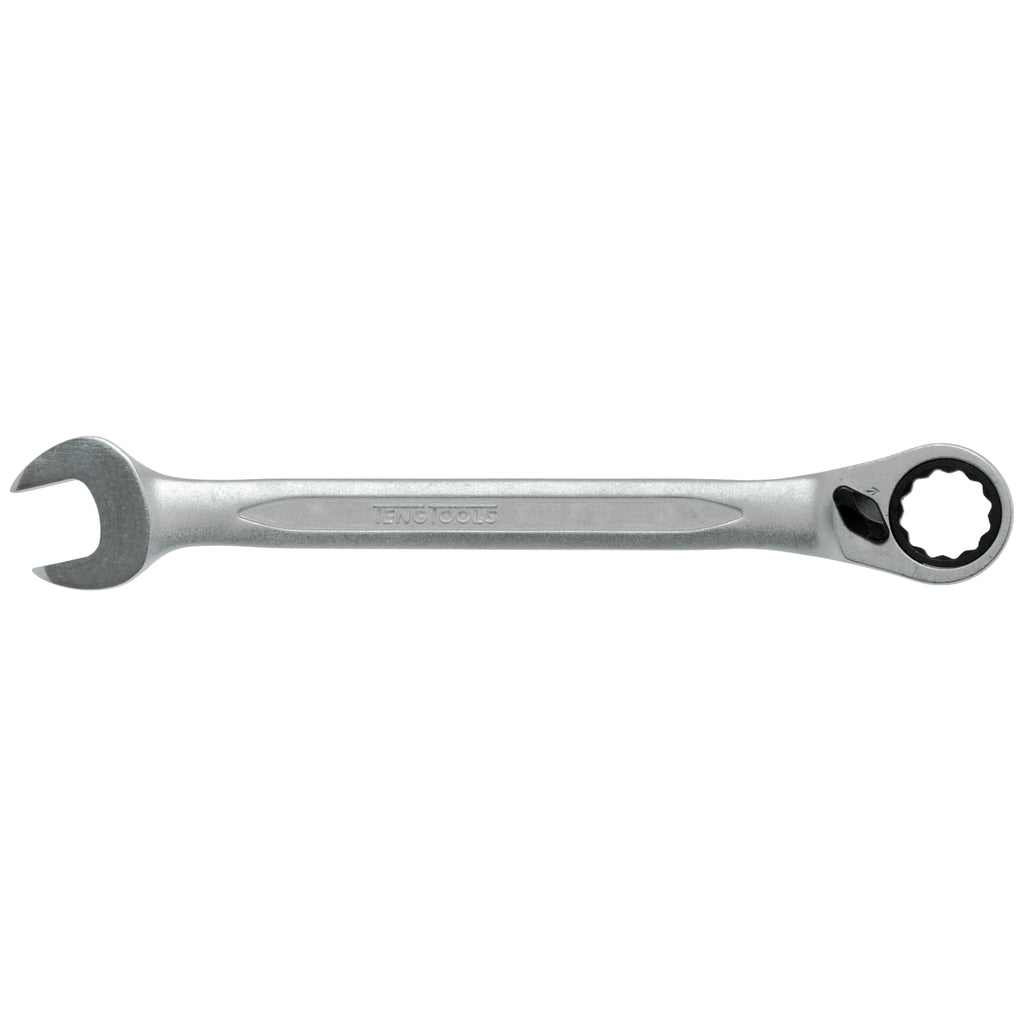

This 9mm reversible ratcheting combination wrench features a 72-tooth ratchet mechanism giving a 5° increment between clicks and a flip reverse lever for convenient direction change. The Teng Tools Hip Grip ring design contacts the flat side of the fastening. Made from chrome vanadium steel with a satin finish to DIN ISO 1711-1 and DIN 3113A standards. Overall length is 150mm and the wrench weighs 30g.
- A ratcheting ring and open ended wrench combined with the same size at each end
- Off set at 15° for easier use on flat surfaces
- TengTools hip grip design on the box end for contact with the flat side of the fastening
- 72 teeth ratchet wrenches giving a 5° increment between clicks
- Reversible ratchet mechanism with a flip reverse lever
- Ideal for rapid tightening and loosening of fasteners
- Chrome vanadium satin finish
- Designed and manufactured to DIN ISO 1711-1 and DIN 3113A
Sizes & specifications
| Size | Part no. | Length | Weight |
|---|---|---|---|
| 8mm | 600508R | 5.5" (140 mm) | 1.1 oz (30 g) |
| 9mm | 600509R | 5.9" (150 mm) | 1.1 oz (30 g) |
| 10mm | 600510R | 6.3" (159 mm) | 1.8 oz (50 g) |
| 11mm | 600511R | 6.5" (165 mm) | 2.5 oz (70 g) |
| 12mm | 600512R | 6.8" (172 mm) | 2.8 oz (80 g) |
| 13mm | 600513R | 7.0" (178 mm) | 3.5 oz (100 g) |
| 14mm | 600514R | 7.5" (191 mm) | 4.2 oz (120 g) |
| 15mm | 600515R | 7.9" (200 mm) | 4.9 oz (140 g) |
| 16mm | 600516R | 8.2" (208 mm) | 6.0 oz (170 g) |
| 17mm | 600517R | 8.9" (226 mm) | 7.1 oz (200 g) |
| 18mm | 600518R | 9.3" (237 mm) | 7.4 oz (210 g) |
| 19mm | 600519R | 9.8" (248 mm) | 7.8 oz (220 g) |
| 22mm | 600522R | 11.4" (290 mm) | 12.7 oz (360 g) |
| 24mm | 600524R | 12.7" (323 mm) | 1.1 lb (0.51 kg) |
| 27mm | 600527R | 14.1" (359 mm) | 1.4 lb (0.64 kg) |
| 30mm | 600530R | 15.9" (403 mm) | 1.9 lb (0.88 kg) |
| 32mm | 600532R | 16.7" (425 mm) | 2.4 lb (1.08 kg) |
Lengths and weights in US units with metric in parentheses, straight from official Teng Tools data.
Specifications
| Type | Spanners & Wrenches |
|---|---|
| Category | Combination Spanners |
| Measurement standard | Metric |
| Ratcheting | Yes |
| Part number | 600509R |
