Teng Tools Feeler Gauge Set 20 Blades Metric 0.05-1.0 mm, Spark Plug Gapping Tool and Thickness Gauge for Valve Clearance - FG20100

Teng Tools FG20100, a 20 blade metric set for setting and checking small clearances.

The blades run from 0.05 mm to 1.0 mm in twenty steps, each one etched with its own figure, and two can be stacked where a clearance falls between sizes. As an automotive set that range covers electrode gaps, tappet and rocker clearances, and bearing or guide clearances on engines, motorcycles, mowers, chainsaws and outboards.

Away from engines the same blades suit guitar setup work, where string action and neck relief are set to a figure, and machinist tasks such as checking shim packs, slide clearance and parallelism on a setup.

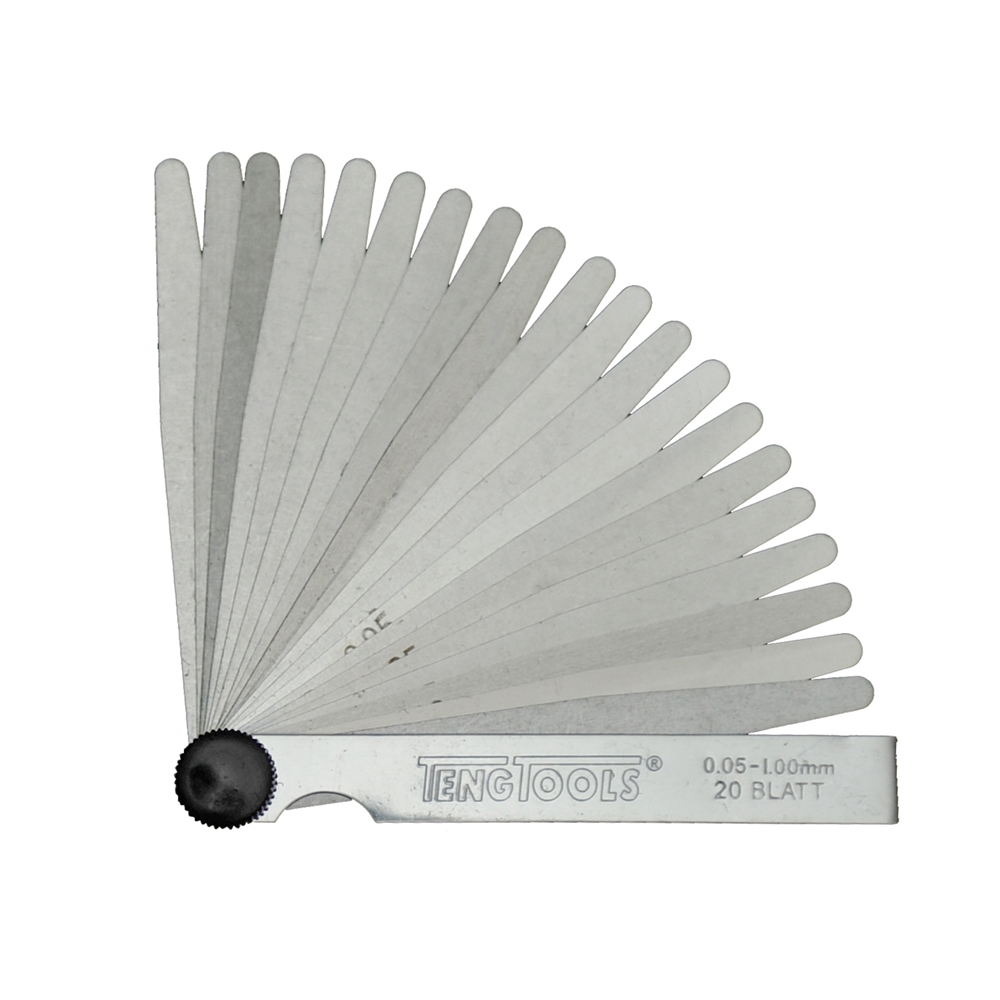

Blades are hardened rolled steel and pivot out of a steel holder. A knurled screw at the pivot clamps the blade in use so it cannot fold back under pressure, and holds the stack closed in transit. Supplied complete, 3.1 oz (88 g).

• SPARK PLUG GAPPING TOOL AND VALVE ADJUSTMENT: Slide a blade into the gap between the spark plug electrodes, or between a valve stem and rocker, and read the gap straight off the blade. The set covers 0.05 mm to 1.0 mm (0.002 in to 0.039 in), which takes in the spark plug gaps and tappet clearances on most engines and motorcycles. Use it for valve adjustment on a rebuild, a tune up or a routine service, where the clearance has to be set to a figure rather than guessed at by feel.
• 20 BLADES, 0.05 MM TO 1.0 MM: Twenty separate blades step finely enough to find the exact clearance instead of settling for the nearest one. Each blade is etched with its own thickness so you can read it without hunting for a chart, and blades can be stacked to make up a size that is not on its own blade. The range is metric throughout, marked in millimetres, with the inch equivalent from 0.002 in to 0.039 in for anyone working to imperial figures.
• HARDENED ROLLED STEEL: Every blade is hardened rolled steel, so it keeps its thickness after being pushed into a tight gap between metal faces again and again. A blade that has spread or worn reads high and sets the clearance wrong, which is the whole reason a gauge like this is worth having. Rolled steel also keeps the edges straight, so the blade slides into a narrow gap rather than catching on the way in.
• FOLD UP CASE WITH LOCKING SCREW: The blades pivot out of a steel case and fold back into it, and a tightening screw at the pivot holds the blade you are using rigid while you take the reading. The same screw stops the whole stack fanning open in a toolbox or a pocket. Blade length is 3-15/16 in (100 mm), which reaches past a rocker or a plug without the case fouling anything, and the complete set weighs 3.1 oz (88 g).
• MACHINIST, GUITAR AND GENERAL GAP WORK: The same blades measure any small gap you need a figure for as a thickness gauge: shim thickness on a machinist setup, the gap behind a bearing or a guide, string action and neck relief on a guitar setup, or a gap that has opened up on a machine and needs checking against its spec. Teng Tools FG20100, supplied as a complete 20 blade set in its case.

Part number: FG20100
